Chief Mount CM2C40U Automated Ceiling Lift Bracket

Chief Mount Automated TV Mounts CM2C40U

Chief Automated Ceiling Lift

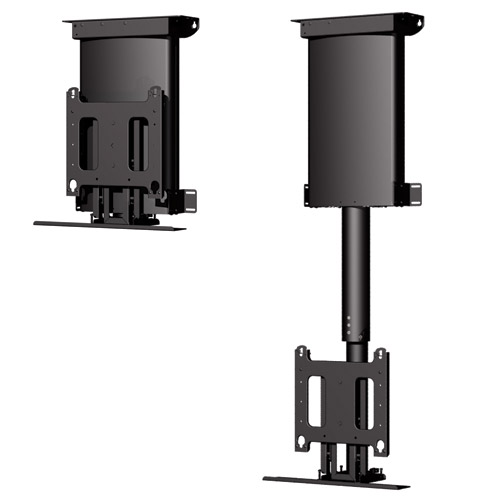

The Chief CM2C40U provides a unique solution to reveal a flat panel TV out of the ceiling.

AutoDrive System provides fast and quiet travel at over 2" (51 mm) per second!
Customizable store and show positions allow fine-tuning for any installation
Collapses to a stored height of only 31" (790 mm)
Offers approximately 40" (101.6 cm) of travel
Multiple control options, including: serial communication, dry contact control and IR remote (included)
Q-Latch Mounting System provides increased security and easy connect/disconnect without tools
A unique cable management system allows cables to move freely with the lift and makes installation clean and hassle free
Unique lift design eliminates flat panel TV width constraints
Compatible with 110/120VAC 60 Hz
No preset positions on CM2 lifts

Certifications:	FCC Approved
Color:	Black
Maximum Extension:	71" (1803.4mm)
Mounting Pattern Compatibility (Universal Versions):	200 x 200mm - 862 x 517mm
Notes:	Approximately 40" (101.6 cm) of overall travel
Orientation:	Landscape
Overall Dimensions (H x W x D):	31.3" x 23.8" x 7.8" (794 x 603 x 197mm)
Shipping Weight:	140.00
Solution Type:	Universal
Typical Screen Sizes:	32 - 61"
Weight Capacity:	190 lbs (86.2kg)

When ordering this item, use this part number: CM2C40U
