19 Inch Open Frame IP65 Touch Screen Monitor

19 Inch Open Frame PCAP IP65 Touch Screen Monitor
  • 19” TFT LCD Touch Screen Display
  • Resistive or Projected Capacitive Touch
  • Brightness 400 or 1000 nits
  • True-Flat Widescreen Design Front Panel IP65
  • Support VGA + DVI + HDMI (optional)

19 Inch Open Frame PCAP IP65 Touch Screen Monitor

19 Inch Open Frame IP65 Wide Touch Screen Monitor

 Click  Part # Name     Price
TWAP-ETPM-S19WR 19" Wide Screen Resistive Touch Display, front panel IP65 rating, 1440x900 resolution (16:9), 400 nits brightness, VGA, DVI, HDMI video input, USB touch input, DC 12V with AC Adapter $694.10
TWAP-ETPM-S19W 19" Wide Screen Projected Capacitive Touch Display, front panel IP65 rating, 1440x900 resolution (16:9), 400 nits brightness, VGA, DVI, HDMI video input, USB touch input, DC 12V with AC Adapter $699.60
TWAP-ETPM-S19WR-1000 19" Wide Screen Resistive Touch Display, front panel IP65 rating, 1440x900 resolution (16:9), 1000 nits brightness, VGA, DVI, HDMI video input, USB touch input, DC 12V with AC Adapter $1,017.50
TWAP-ETPM-S19W-1000 19" Wide Screen Projected Capacitive Touch Display, front panel IP65 rating, 1440x900 resolution (16:9), 1000 nits brightness, VGA, DVI, HDMI video input, USB touch input, DC 12V with AC Adapter $1,023.00



  • Specifications
  • Overview
  • Support
Display
Model Name TWAP-ETPM-S19W
Size/Type 19" TFT
Resolution (pixels) 1440 x 900
Number of Colors 16.7M
Touch Type Resistive or Projected Capacitive Touch
Brightness (cd/m2) 400 or 1000 nits
Backlight lifetime 50000 hrs
Viewing Angle 170°H/160°V
System
VGA 1
DVI 1
HDMI 1 (optional)
OSD Control NONE
Others USB interface (for touch screen)
ower
Power Input DC 12V
Consumption <35W
Mechanical
Construction Aluminum Die-casting Chassis
IP rating IP65 Dustproof and Wash-Down Capable (front only)
Touch (option) Resistive or Projected Capacitive Touch
Color (option) Silver or Black
Mounting Panel mounting, VESA 100 x 100

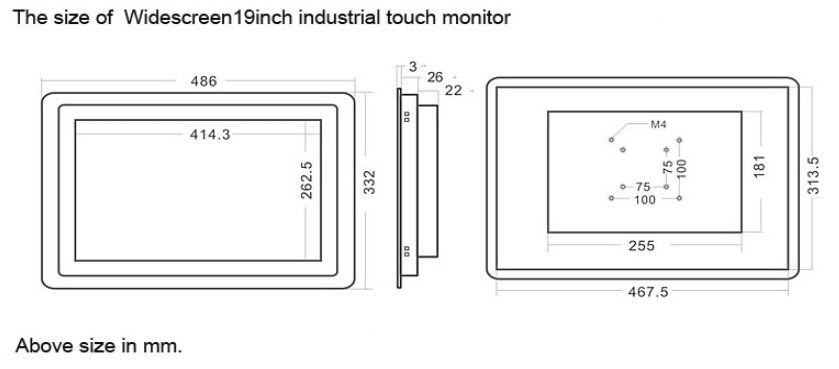

Dimension (mm) 486 (L) x 332 (H) x 51.3 (D)
Net weight 5.8 kg
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20° ~60°C
Storage humidity 10 to 90% @40°C
Non-condensing
Without touch screen
Certification CE/FCC Class A
Warranty Two years limited parts and labor warranty
  • 19” TFT LCD Touch Screen Display
  • Resistive or Projected Capacitive Touch
  • Brightness 400 or 1000 nits
  • True-Flat Widescreen Design Front Panel IP65
  • Support VGA + DVI + HDMI (optional)
