12" Panel Mount LCD Touch Screen


12 inch Panel Mount LCD Touch Screen Display
12" Panel Mount TWAP-1121ADP


  • 12.1" SVGA Color TFT Touch Display
  • Heavy-duty steel chassis
  • Front panel NEMA 4, IP 65 Ratinig
  • OSD controls on back side
  • Resistive Touch Screen
  • Ideal for industrial automation production
  • Analog RGB single direct input (optional)
  • Multi-scan function
  • Support Panel Mount and VESA 75 mm Wall Mount
12 inch Panel Mount LCD Touch Screen Display Rear View


         PDF File

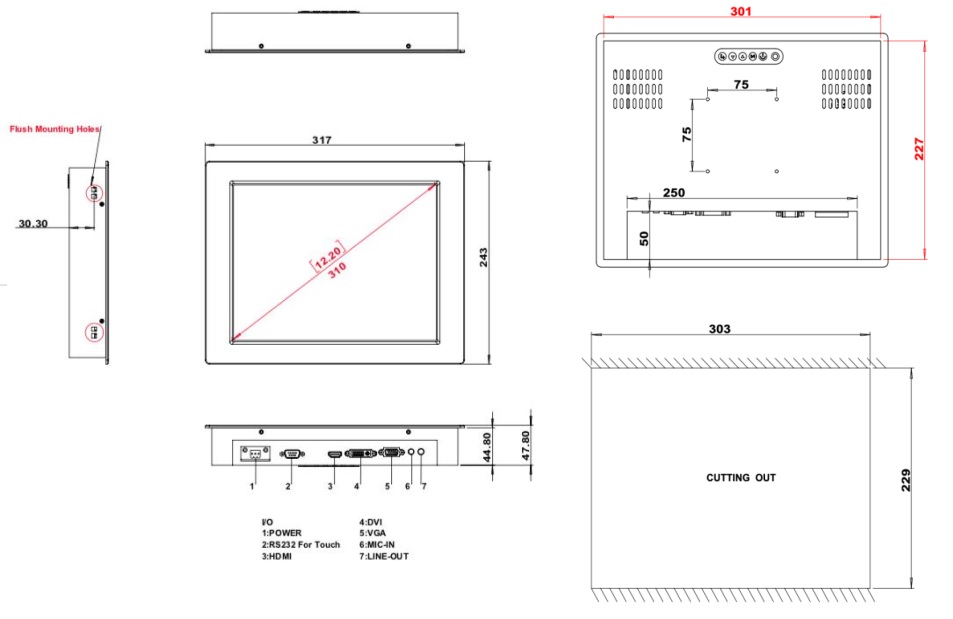

         Dimensional Drawing

         Mounting Instructions


 Click  Part # Name     Price
TWAP-1121ADP-USB 12" Panel Mount Display System TWAP-1121ADP USB $660.00
TWAP-1121ADP-S 12" Panel Mount Display System TWAP-1121ADP Serial $660.00


Product Name
TWAP-1121ADP 12" Panel Mount Display System
Display Size 12" Diagonal -Color Active Matrix TFT Panel
Resolution / Colors 800 (W) x 600 (H) pixels
Brightness 300 Nits cd/m²   262k colors
Backlight 50,000 hours
Touch Screen Resistive Analog Antiglare
Viewing Angle 120° Horizontal,  95° Vertically
I/O Connectors 1xDC power input, 1xVGA, optional:DVI,
S-Video,RCA, Touch Screen (RS-232 or USB)

Operating Temperature
Storage Temperature
   0°~50° C (32°~122° F)
-20°~60° C (-4°~140° F)
Relative Humidity 10~95% @40 C Non-condensing, without touch screen
Vibration
Shock
1G peak, 10~150 Hz (Random)
30G peak acceleration (11 msec. duration)
Ratings
Certifications
NEMA 4, IP 65 Front Bezel
CE and FCC class A
Power Input DC 12V, optional DC 11~28V
Control Functions OSD Buttons for Menus on back side

Construction Steel Metal Case & Plastic Front Panel
Mounting Method Panel Mount and Wall Mount Capable VESA 75 mm
Dimensions 12.48     x  9.57     x  1.77   inches
317 (W) x 243 (H) x 45 (D) mm
Weight 9.13 lbs   (4.14 kg)
Warranty 1 Year
