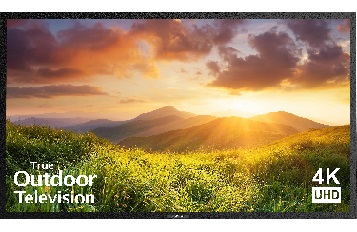

SunBrite SB-S-55-4K NON-TOUCH 4K UHD Outdoor TV

SunBrite SB-S-55-4K Signature Series 4K UHD Outdoor TV
  • 4K UHD high-brightness (700NIT) commercial-grade screen
  • OptiView Technology
  • Built-in HDBaseT Receiver
  • Outdoor Safe
  • Temperature regulation system
  • Innovative weather-tight cable entry system
  • Weatherproof remote control
  • Two year Parts and Labor Warranty

SunBrite SB-S-55-4K Signature Series 4K UHD Outdoor TV

SunBrite SB-S-55-4K NON-TOUCH 4K UHD Outdoor TV

The NEW award-winning SunBrite Signature Series models now include a 4K UHD high-brightness screen with direct LED back-light & anti-glare technology - offering 4x the resolution of full HD.

Designed for permanent outdoor installation in partial sun outdoor spaces - such as a partially enclosed patio, gazebo or covered outdoor area - the all-new Signature Series introduces highly-upgraded features that are largely absent from other outdoor televisions, like a brilliant, direct-lit 4K UHD screen (HDCP 2.2 compliant).

The 55" SB-S-55-4K does not have built-in speakers and does not include its speaker bar. An all-weather, detachable, 20 WATT speaker bar SB-SP557 is sold separately.

 Click  Part # Name     Price
SB-S-55-4K 55" SunBrite SB-S-55-4K Outdoor TV Aluminum Coated Exterior, Landscape Only, NON-TOUCH, 3840 X 2160 Full 4K Ultra HD, Commercial Grade 700 NITS, LED LCD $4,499.00
SB-SP557 SunBrite SB-SP557 20 Watt Speaker Module $175.00
SB-WM46NA SunBrite TV SB-WM46NA Wall Mount with Tilt, Non-Articulating, 42"/43"/46"/49"/55"/65" $150.00



  • Specifications
  • Overview
  • Accessories
  • Support
Screen 55-inch Diagonal Color Active Matrix TFT LED - Partial Sun
Resolution 3840 x 2160 UHD
Aspect Ratio 16:9
Contrast Ratio 4000:1
Frame Rate 60Hz
Viewing Angle 178 °x 178 °
Response Time 6.5 milliseconds
TV formats 2160p, 1080p, 1080i, 720p, 720i, 480p, 480i
Screen Orientation Landscape Only
Input Connectors
        RF Antenna/CATV (ATSC/QAM/NTSC) x1
        HDBaseT Connections Up to 4k 3840 x 2160 @ 30hz
        HDMI HDMI Input x2 (HDMI 1.4, HDMI 2.0, HDCP 2.2) 3840 x 2160 @ 60hz
        Control Set Concealed Rear IR Window
        Audio Output Connectors Digital TosLink Optical Audio(fixed) RCA L+R (variable)
        Included Speaker Optional 20 WATT speaker bar (not Included). This model does not include built-in speakers.
        Power Consumption 100-240 VAC, 50-60 Hz 2.8 A Max (270 Watts/2.3a@120v)
Operating Temp -24° to 122° F. (-31° to 50°C.)
Non-op. Temp -24° to 140° F. (-31° to 60°C.)
VESA Mounting Pattern 400mm x 400mm
TV Dimensions 50.5” W x 29.75” H x 3.77” D (1285mm W x 755mm H x 96mm D)
Shipping Dimensions 58” W x 41” H x 9” D
Accessories Included Weather-Proof Remote Control
Exterior Powder-coated aluminum
Exterior Colors Black, Silver, White
TV Weight 68.5 lbs (31 kgs)
Shipping Weight 82 lbs (37.27 kgs)
Residential Warranty Two-year, parts and labor.
Commercial Warranty Two-year, parts and labor.

The NEW award-winning Signature Series models now include a 4K UHD high-brightness screen with direct LED back-light & anti-glare technology - offering 4x the resolution of full HD.

Designed for permanent outdoor installation in partial sun outdoor spaces - such as a partially enclosed patio, gazebo or covered outdoor area - the all-new Signature Series introduces highly-upgraded features that are largely absent from other outdoor televisions, like a brilliant, direct-lit 4K UHD screen (HDCP 2.2 compliant).

An innovative new SunBriteTV feature, OptiView, provides pre-configured settings optimized for brighter daytime or darker nighttime outdoor viewing environments. A built-in HDBaseT receiver also comes standard.

Equipped with the same all-weather features that made SunBriteTV the leader in outdoor television, the NEW Signature Series can operate in temperatures from -24° to 122°F.

At up to 3X the brightness of typical indoor televisions, a new, brighter 700-NIT commercial-grade anti-glare panel offers a prime viewing experience in the indirect sunlight and high ambient light conditions often encountered outdoors.

The new SB-S-55-4K-BL does not include built-in speakers. Its companion 20WATT all-weather speaker bar (SB-SP557) is offered separately. Or, pair with your own own audio system.

Safety First

Indoor TV manufacturers specifically prohibit outdoor use (just check the manual). Installing a display that is independently certified for safe use outdoors helps protect homeowners from harm and installers from liability.

A 4K UHD high-brightness (700NIT) commercial-grade anti-glare screen

At up to 3X the brightness of typical indoor televisions, this premium screen offers a prime viewing experience in the indirect sunlight and high ambient light conditions often encountered outdoors.

OptiView Technology

Preconfigured settings optimized for brighter daytime or darker nighttime outdoor viewing environments.

Built-in HDBaseT Receiver

Custom integrators asked for it. We listened. An integrated HDBaseT receiver is now standard equipment with every new SunBriteTV Signature Series, allowing transmission of ultra-high-definition video, audio and control over a single, long-distance category cable.

Sound Bar Not Included

The new Signature Series does not include built-in speakers. We offer a 20 WATT all-weather speaker bar as an optional accessory, or pair your new SunBriteTV Signature Series with your own home - or custom - audio system.

  • Outdoor-Safe, built for permanent outdoor installation (partial sun applications). Indoor TV manufacturers specifically prohibit outdoor use (just check the manual). Don’t risk safety and your warranty by using an indoor TV outdoors.
  • Commercial-grade 4K UHD high-brightness (700 NIT) screen with direct LED backlight and antiglare technology delivers ultra-bright, dramatic picture detail with 4 times the resolution of Full HD
  • Up to 3 times brighter than indoor TVs, for improved viewing in brighter outdoor environments
  • Built-in HDBaseT receiver with IR repeater - A clean, affordable option for receiving up to 4K UHD resolution video, power, and control
  • OptiView™ Day and Night modes - optimized picture quality settings preconfigured for the ultimate outdoor viewing experience with a single touch
  • New Signature Series models do not come with built-in speakers. An optional all-weather 20 WATT sound baris available to purchase separately
  • Supports HDMI 2.0 and HDCP 2.2 to ensure compatibility with the latest 4K sources and streaming services
  • Powder-coated rust-proof aluminum exterior protects internal components from rain, snow, dust, insects, humidity, and salt air
  • Innovative weather-tight Cable Entry System seals out moisture and allows for easy hook-ups
  • Large media bay with plenty of room for many popular media players, cables, baluns, and extenders
  • Media bay power ports power media players without the need for external cords (5v@3.5amps /12v@3amps)
  • RS232 serial control with discrete on, off, and input control for additional control integration
  • Dispersive temperature regulation system allows operation in low temperatures from -24°F and high temperatures up to 122°F (Storage temperature from -24°F up to 140°F).
  • Rear IR receiver in media bay keeps IR emitter hidden & protected
  • 2 HDMI inputs provide multiple connectivity options
  • Weatherproof remote control. Leave it outdoors. Conveniently ready when you need it.
  • Remote control Lock-out prevents unauthorized users from changing programming
  • Optional weatherproof speaker bar (not included) for the flexibility to add basic or advanced audio
  • Optional Outdoor Dust Cover (not included)
