15" All-In-One POS Terminal SP-1000

Partner Tech 15 Inch POS Terminal SP-1000

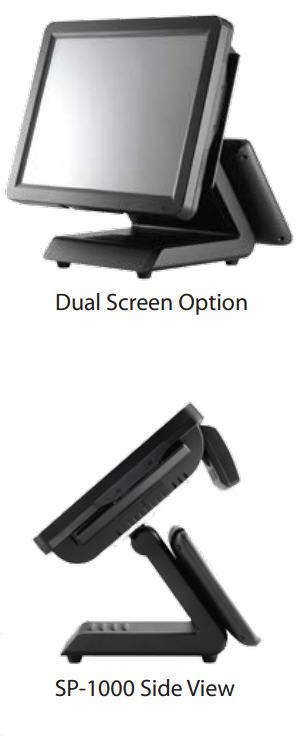

  SP-1000 Detail View Partner Tech 15 Inch POS Terminal SP-1000
The SP-1000 was designed specifically to meet the needs of today's power hungry POS and customer service applications. Powered by a 1.8GHz dual core processor and up to 4GB or RAM, the SP-1000 has the power to support the most processor intensive applications.


 Partner Tech SP-1000 POS Terminal

  Product Data Brochure and Specs

  • Intel Atom D425 @ 1.8 GHz / 512k L2 cache
  • 5-wire Resistive touch (PS2 interface)
  • 3 track magnetic reader (included)
  • Standard DDR1 1GB supports up to 4GB
  • 15 Inch TFT Resistive Touch

Model

SP-1000
CPU Type

Intel Atom processor D425 (512k L2 Cache, 1.80 GHz, single core)

Intel Atom processor D525 (1M L2 Cache, 1.80 GHz, dual core)
LCD 15" Active TFT color LCD, resolution 1024 x 768
Touch 5-wire Resistive touch
Memory 1GB 204 pin DDR3 SO-DIMM,  up to 4GB
Ethernet 10/100M/1G
Hard Drive 160GB HDD Internal 2.5" type SATA HDD 160GB x 2
I/O Interface
  • 6 COM ports
  • 1 DB-15 VGA port
  • 1 DB-25 LPT port
  • 1 RJ-11 port for 2 cash drawers (+24v)
  • 1 RJ-45 LAN port with activity and link LEDs
  • 2 Audio ports (1 line out, 1 MIC in)
  • 8 USB 2.0
  • 1 DC +12v power adaptor connector
Expansion Options Mini PCI-e, supports Wi-Fi module
Optional Peripherals

3 track magnetic card reader (included)
Customer display module (2 x 20 VFD)
Biometric reader, Smart card reader, I-button, RFID reader
Dual screen 11.6" monitor
Operation System Windows 7, Windows XP, XPe, Linux (ubuntu, Fedora), WEPOS, POSReady
Power Supply AC100-240V/DC12V, 7.5A, 90 watt power adaptor
Dimensions 14.17" (W) x 9.84" (D) x 14.14" (H)
Operating Temperature 32º F ~ 104ºF
Storage Temperature -4º F ~ 140ºF
Humidity 15% ~ 80%
Certifications CE / FCC Class B, Ul, cUL, CB, VCCI, BSMI
