37" Open Frame LCD Touch Monitor
 KTLC-370OT 37" Open Frame Touch |

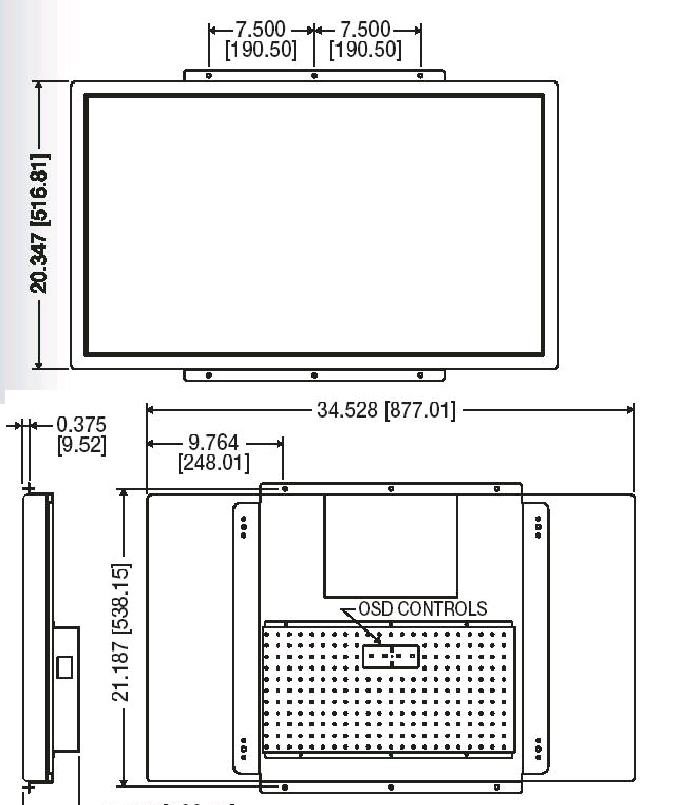

Drawing  |
LCD Monitor |
Touch Screen |
||
| Size | 37" LCD (16:10) | Technology | Resistive |
| View Area | 37" Diagonal |
Material | Plastic on Glass |
| Display Area (mm) | 820 x460 mm (32.28x18.11") | Surface Treatment | Anti-glare hard coating |
| Display Type | Color TFT | Spacer | Invisible (patented) |
| Resolution (Max PC) |
1366 x 768 |
Light Transmission | 80% nominal |
| Colors | 16 million | Scratch Resistance | 3H pencil hardness min. |
| Brightness | 500 cd/m2 | Touch Resolution | 4096 x 4096 (PC & MAC) |
| Contrast Ratio | 800:1 | Interface Controller | External box, USB or Serial |
| VESA Mounting Holes | No | Controller Size (mm) | 76.2 x 38.1 x19 |
| Horizontal Viewing Angle | 176 degrees | Power | 5 VDC from computer |
| Vertical Viewing Angle Response Time |
176 degrees 9 ms |
Operating Systems | WIN 7, Vista, XP, 2000, XP, ME, 98, Linux, Mac |
| Video Signal | Analog | Drivers | Mouse emulation |
| Horizontal Scan | 30 -79 KHz | Activation Force | 50-120 grams per sq. cm |
| Vertical Scan | 56-75 Hz | Response Time | < 10 msec. |
| Power (VAC) | 100-240V, 50-60Hz | Position Accuracy | 3 mm maximum error |
| Power Input (VDC) | 12V | Touch Mode | Mouse click/drag functions |
| Power Consumption | <65W maximum | Operating Temperature | -10 to 70 C |
| Operating Temperature | 0 to 45 C | Storage Temperature | -30 to 85 C |
| Storage Temperature | -30 to 80 C | Humidity | 95%RH @ 40C - 96 hours |
| Speakers Audio-Sound |
No |
Chemical Resistance | Most cleaning chemicals |
| Dimensions (mm) WxHxD | See Drawing | Durability | 3 million touches ea. point |
| Weight | Touch Screen Drivers | Free Life-Time upgrades | |
| Warranty | 1-year parts & labor | Warranty | 1-yr. touch, 3-yr. controller |
| “Best Buy” in the touch screen industry. |
| Part # | Name | Price | |||
| KTLC-370-OT-USB | 37" Open Frame Magic Touch Resistive Touch, USB PC | $2,610.00 | |||
| KTLC-370-OT-ProE | 37" Open Frame Magic Touch Resistive Touch, Serial PC | $2,610.00 | |||
| KTLC-370-OT-USB-M | 37" Open Frame Magic Touch Resistive Touch, USB MAC | $2,610.00 |
