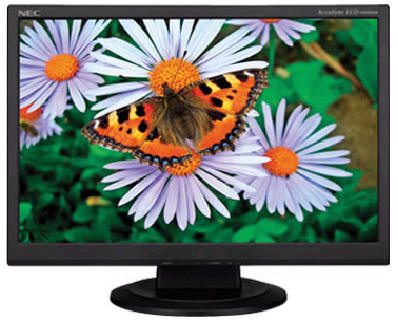

19" LCD WideScreenTouch Monitor
  19" Touch Screen KTLC-19WNA1 |
|
| LCD Monitor | Touch Screen | ||
| Size | 19" LCD Wide Screen |
Technology | Resistive |
| View Area | 19" Diagonal (16:10) | Material | Plastic on Glass |
| Display Area (mm) | 410 X 257 (16.14x10.12") | Surface Treatment | Anti-glare hard coating |
| Display Type | Color TFT | Spacer | Invisible (patented) |
| Resolution (Max PC) |
1440 x 900 |
Light Transmission | 80% nominal |
| Colors | 16.7 million | Scratch Resistance | 3H pencil hardness min. |
| Brightness | 300 cd/m2 | Touch Resolution | 4096 x 4096 (PC & MAC) |
| Contrast Ratio | 1000:1 | Interface Controller | External box, USB or Serial |
| VESA Mounting Holes | 100 x 100 mm | Controller Size (mm) | 76.2 x 38.1 x19 |
| Horizontal Viewing Angle | 170 degrees | Power | 5 VDC from computer |
| Vertical Viewing Angle Response Time |
170 degrees 5 ms |
Operating Systems | WIN 7, Vista, XP, 2000, XP, ME, 98, Linux, Mac |
| Video Signal | Analog, VGA, DVI |
Drivers | Mouse emulation |
| Horizontal Scan | 31.5 - 81 KHz | Activation Force | 50-120 grams per sq. cm |
| Vertical Scan | 56-75 Hz | Response Time | < 10 msec. |
| Power (VAC) | 100-240V, 50-60Hz | Position Accuracy | 3 mm maximum error |
| Power Input (VDC) | 12V Built-in |
Touch Mode | Mouse click/drag functions |
| Power Consumption | <41W maximum | Operating Temperature | -10 to 70 C |
| Operating Temperature | 5 to 35 C | Storage Temperature | -30 to 85 C |
| Storage Temperature | -10 to 60 C | Humidity | 95%RH @ 40C - 96 hours |
| Speakers Audio-Sound |
Built-In | Chemical Resistance | Most cleaning chemicals |
| Dimensions (mm) WxHxD | 439.4 x 299.8 x 54.6 mm without stand |
Durability | 3 million touches ea. point |
| Weight | 4.6 KGs w/ stand, 14 lbs with |
Touch Screen Drivers | Free Life-Time upgrades |
| Warranty | 3-year parts & labor | Warranty | 1-yr. touch, 3-yr. controller |
| "Best Buy” in the touch screen industry. |
| Click Part # | Name | Price | |||
| KTLC-19WNA1-USB5 | 19" Magic Touch 5 Wire Resistive Touch, USB for PC | $385.00 | |||
| KTLC-19WNA1-USB5-M | 19" Magic Touch 5 Wire Resistive Touch, USB for MAC | $385.00 |
